CONFLEX Tutorials

Conformer clustering

[What is a conformer clustering ?]

Classifying conformers into several meaningful groups is called a conformer clustering.
For example, we can obtain clusters consists of conformers that have a similar conformation, respectively, by grouping conformers based on structure parameters. It is possible to estimate how many conformers close to the most stable structure or a conformation in the X-ray crystal structure exist in what energy range.
In order to perform the conformer clustering, it needs a criterion to relate the conformers. The criterion for estimating how similar conformers is to a target conformer is called a distance between conformations. CONFLEX can perform the conformer clustering using RMSD values of dihedral angles or atomic coordinates as the structure parameter. The conformer clustering using RMSD value of dihedral angles as the distance between conformations is shown below as an example.

[Clustering all conformers of n-pentane]

This section explains how to perform a conformer clustering for all conformers of n-pentane.
First, we carry out a conformation search of n-pentane.

n-pentane.mol

n-pentane


 17 16  0  0  0  0  0  0  0  0999 V2000
   -1.2316   -1.9901   -0.0000 C   0  0  0  0  0  0  0  0  0  0  0  0
    0.0874   -1.2286   -0.0000 C   0  0  0  0  0  0  0  0  0  0  0  0
   -0.1902    0.2689   -0.0000 C   0  0  0  0  0  0  0  0  0  0  0  0
    1.1288    1.0304   -0.0000 C   0  0  0  0  0  0  0  0  0  0  0  0
    0.8512    2.5279   -0.0000 C   0  0  0  0  0  0  0  0  0  0  0  0
   -1.0288   -3.0844   -0.0000 H   0  0  0  0  0  0  0  0  0  0  0  0
   -1.8145   -1.7213    0.9093 H   0  0  0  0  0  0  0  0  0  0  0  0
   -1.8151   -1.7211   -0.9088 H   0  0  0  0  0  0  0  0  0  0  0  0
    0.6703   -1.4973   -0.9093 H   0  0  0  0  0  0  0  0  0  0  0  0
    0.6709   -1.4976    0.9088 H   0  0  0  0  0  0  0  0  0  0  0  0
   -0.7731    0.5377    0.9093 H   0  0  0  0  0  0  0  0  0  0  0  0
   -0.7737    0.5379   -0.9088 H   0  0  0  0  0  0  0  0  0  0  0  0
    1.7117    0.7617   -0.9093 H   0  0  0  0  0  0  0  0  0  0  0  0
    1.7123    0.7614    0.9088 H   0  0  0  0  0  0  0  0  0  0  0  0
    1.8151    3.0844   -0.0000 H   0  0  0  0  0  0  0  0  0  0  0  0
    0.2683    2.7967    0.9093 H   0  0  0  0  0  0  0  0  0  0  0  0
    0.2677    2.7969   -0.9088 H   0  0  0  0  0  0  0  0  0  0  0  0
  1  2  1  0
  1  6  1  0
  1  7  1  0
  1  8  1  0
  2  3  1  0
  2  9  1  0
  2 10  1  0
  3  4  1  0
  3 11  1  0
  3 12  1  0
  4  5  1  0
  4 13  1  0
  4 14  1  0
  5 15  1  0
  5 16  1  0
  5 17  1  0
M  END

[Execution by Interface]

Open the n-pentane.mol file by CONFLEX Interface.

Interface n-pentane

Select [CONFLEX] in Calculation menu, and click Detail Settings in the calculation setting dialog displayed.

Basic Settings

In [General Settings] dialog on the detail setting dialog, select [Conformation Search] in the pull-down menu of [Calculation Type:].

General Settings Dialog

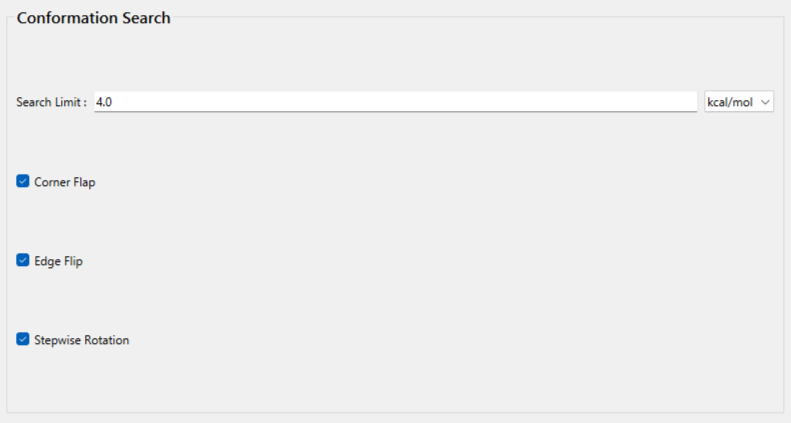

Next, edit the value of [Search Limit:] to 4.0 in [Conformation Search] dialog on the detail setting dialog.
When the calculation settings are complete, click Edit & Submit of the detail setting dialog.

Conformation Search Dialog

When click Edit & Submit, a dialog with the keywords for the calculation settings will be displayed.
Add [CHECK=(TORSION,NOENERGY)] keyword to the dialog. This keyword means that RMSD of dihedral angles around bonds in a backbone, not energy, is employed for the distance between conformations.

Edit Submit Dialog

When you complete the addition, click Submit. The calculation will start.

[Execution by command line]

The calculation settings are defined by describing keywords in the n-pentane.ini file.

n-pentane.ini file

MMFF94S  CONFLEX SEL=4.0 CHECK=(TORSION,NOENERGY)

Explanations of each keyword are below.

Keyword Explanation
MMFF94S Use MMFF94s force field
CONFLEX Execute a conformation search
SEL=4.0 Search limit sets to 4.0 kcal/mol.
CHECK=(TORSION,NOENERGY) RMSD of dihedral angles around bonds in a backbone, not energy, is employed for the distance between conformations.

Store the two files of n-pentane.mol and n-pentane.ini in an one folder, and execute below command. The calculation will start.

C:\CONFLEX\bin\flex9a_win_x64.exe  -par  C:\CONFLEX\par  n-pentaneenter

The above command is for Windows OS. For the other OS, please refer to [How to execute CONFLEX].

Calculation results

After the search finished, we can get 11 conformers. The dihedral angles of C-C-C-C of each conformer are below.

Table: Dihedral angles of C-C-C-C of each conformer

No. Steric E Dihedral angle
1-2-3-4 2-3-4-5
1 -5.2718 -180.00 180.00
2 -4.4419 175.69 65.65
3 -4.4419 -65.65 -175.69
4 -4.4419 65.65 175.69
5 -4.4419 -175.69 -65.65
6 -3.8487 60.27 60.27
7 -3.8487 -60.27 -60.27
8 -1.5718 -64.48 95.34
9 -1.5718 95.34 -64.48
10 -1.5718 -95.34 64.48
11 -1.5718 64.48 -95.34
n-pentane with numbers

Next, we perform a conformer clustering of 11 conformers using the dihedral angle around C2-C3 bond as the distance between conformations.

[Execution by Interface]

With the n-pentane.mol file open in CONFLEX Interface, select [CONFLEX] in Calculation menu, and click Detail Settings in the calculation setting dialog displayed.
After that, click Edit & Submit in the detail setting dialog.

Edit and Submit

Edit the contents of the dialog as shown below, and click Submit. The calculation will start.

Cluster Settings

Explanations of each keyword are below.

Keyword Explanation
NOSEARCH Do not perform a conformation search
CLUSTER Perform a conformer clustering
CCLUS_DISTANCE=TORSION Use dihedral angle as the distance between conformations
CCLUS_LIMIT=10.0 Group conformers with the distance between conformations within 10.0.
CCLUS_NREF=1 The number of bonds to use as a criterion for clustering.
CLUS_IREF=(2,3) Serial number of atoms consisting bond to use as a criterion for clustering.

[Execution by command line]

Edit the contents in the n-pentane.ini file as shown below.

n-pentane.ini file

MMFF94S  CONFLEX SEL=4.0 CHECK=(TORSION,NOENERGY)
NOSEARCH
CLUSTER
CCLUS_DISTANCE=TORSION
CCLUS_LIMIT=10.0
CCLUS_NREF=1
CCLUS_IREF=(2,3)

Explanations of each keyword are below.

Keyword Explanation
NOSEARCH Do not perform a conformation search
CLUSTER Perform a conformer clustering
CCLUS_DISTANCE=TORSION Use dihedral angle as the distance between conformations
CCLUS_LIMIT=10.0 Group conformers with the distance between conformations within 10.0.
CCLUS_NREF=1 The number of bonds to use as a criterion for clustering.
CLUS_IREF=(2,3) Serial number of atoms consisting bond to use as a criterion for clustering.

Store the three files of n-pentane.mol, n-pentane.ini, and n-pentane.fxf in an one folder, and execute below command. The calculation will start.

C:\CONFLEX\bin\flex9a_win_x64.exe   -par   C:\CONFLEX\par   n-pentaneenter

The above command is for Windows OS. For the other OS, please refer to [How to execute CONFLEX].

Calculation results

After the calculation finished, results of the conformer clustering are outputted in the n-pentane.clu file. Fist part in this file shows the number of conformers and index of the dihedral angle using as the distance between conformations.

=-==-==-==-==-==-==-==-==-==-==-==-==-==-==-==-==-==-==-==-==-==-==-==-==-==-=
     CONFLEX CONFORMATIONAL CLUSTERING FILE
=-==-==-==-==-==-==-==-==-==-==-==-==-==-==-==-==-==-==-==-==-==-==-==-==-==-=

==============================================================================
# CLUSTERING INFORMATION
==============================================================================
CLUSTERING METHOD: SINGLE LINKAGE
NUMBER OF CONFORMERS CLUSTERED =     11 CONFORMERS (TOTAL      11 CONFORMERS)
DISTANCE (SIMILARITY) INDEX: TORSIONAL DISTANCE
DISTANCE DEFINITIONS:      1 TORSIONS
     1:    1-   2-   3-   4

==============================================================================

Next, each the distance between conformations is listed.
[SORTED NUMBER] corresponds to the order of energy, and [CID NUMBER] corresponds to the order found during the conformation search. By this list, we find that the distance between 4th and 9th conformations is 1.1717 based on C1-C2-C3-C4 dihedral angle.

==============================================================================
# DISTANCE MATRIX ELEMENTS
==============================================================================
NUMBER OF DISTANCE MATIRX ELEMENTS =     55
       SORTED NUMBER        CID NUMBER                   DISTANCE
    ------------------  ------------------    ----------------------------
           I       J           I       J        RMSD      MAXD     DRMSD
           4       9           3       9        1.1717   -1.1717   0.0000
           3       8           2       6        1.1717    1.1717   0.0000
           6       9           7       9        4.2046    4.2046   3.0329
           7       8           8       6        4.2046   -4.2046   0.0000
           1       2           1       5        4.3141   -4.3141   0.1095

Finally, the result of conformer clustering with CCLUS_LIMIT=10.0 is outputted. The numbers in this table are [CID NUMBER], and they are shown in order of energy.

==============================================================================
# RESULT -     1  IN CID NUMBER
# MIN=     1, MAX=     3, AVERAGE=    2.00, DISPERSION=     5.640
==============================================================================
DISTANCE THRESHOLD=   10.00
NCLUSTERS=     5
SIZE=     3
           1           5           4
SIZE=     3
           2           8           6
SIZE=     3
           3           7           9
SIZE=     1
          11
SIZE=     1
          10

==============================================================================

Next, using the result of conformation search obtained above, we perform a conformer clustering of 11 conformers using two dihedral angles as the distance between conformations.

[Execution by Interface]

With the n-pentane.mol file open in CONFLEX Interface, select [CONFLEX] in Calculation menu, and click Detail Settings in the calculation setting dialog displayed.
After that, click Edit & Submit in the detail setting dialog.

Edit and Submit Init

Edit the contents of the dialog as shown below, and click Submit. The calculation will start.

Edit and Submit modified

Here, CCLUS_LIMIT=70.0 set, and group the conformers with the distance between conformations within 70.0.
[CCLUS_NREF=2] set, and add [CCLUS_IREF=(3,4)]. This means that the dihedral angle around C3-C4 bond adds to the criterion for clustering.

[Execution by command line]

Edit the contents in the n-pentane.ini file as shown below.

n-pentane.ini file

MMFF94S  CONFLEX SEL=4.0 CHECK=(TORSION,NOENERGY)
NOSEARCH
CLUSTER
CCLUS_DISTANCE=TORSION
CCLUS_LIMIT=70.0
CCLUS_NREF=2
CCLUS_IREF=(2,3)
CCLUS_IREF=(3,4)

Here, CCLUS_LIMIT=70.0 set, and group the conformers with the distance between conformations within 70.0.
[CCLUS_NREF=2] set, and add [CCLUS_IREF=(3,4)]. This means that the dihedral angle around C3-C4 bond adds to the criterion for clustering.

Store the three files of n-pentane.mol, n-pentane.ini, and n-pentane.fxf in an one folder, and execute below command. The calculation will start.

C:\CONFLEX\bin\flex9a_win_x64.exe   -par   C:\CONFLEX\par   n-pentaneenter

The above command is for Windows OS. For the other OS, please refer to [How to execute CONFLEX].

Calculation results

Depending on the setting change, each the distance between conformations will change as follow.

==============================================================================
# CLUSTERING INFORMATION
==============================================================================
CLUSTERING METHOD: SINGLE LINKAGE
NUMBER OF CONFORMERS CLUSTERED =     11 CONFORMERS (TOTAL      11 CONFORMERS)
DISTANCE (SIMILARITY) INDEX: TORSIONAL DISTANCE
DISTANCE DEFINITIONS:      2 TORSIONS
       1:    1-   2-   3-   4
       2:    2-   3-   4-   5

==============================================================================
# DISTANCE MATRIX ELEMENTS
==============================================================================
NUMBER OF DISTANCE MATIRX ELEMENTS =     55
       SORTED NUMBER        CID NUMBER                   DISTANCE
    ------------------  ------------------    ----------------------------
           I       J           I       J        RMSD      MAXD     DRMSD
           9      11           9      11       30.8622   30.8622   0.0000
           8      10           6      10       30.8622  -30.8622   0.0000
           4       9           3       9       62.9213   88.9765  32.0591
           3       8           2       6       62.9213  -88.9765   0.0000
           2      10           5      10       62.9213   88.9765   0.0000
           5      11           4      11       62.9213  -88.9765   0.0000

Since CCLUS_LIMIT=70.0 set, 5, 10, 2, and 6 and 3, 9, 4, and 11 in CID NUMBER belong to same group, respectively.

==============================================================================
# RESULT -     1  IN CID NUMBER
# MIN=     1, MAX=     4, AVERAGE=    2.00, DISPERSION=     6.840
==============================================================================
DISTANCE THRESHOLD=   70.00
NCLUSTERS=     5
SIZE=     1
           1
SIZE=     4
           5          10           2           6
SIZE=     4
           3           9           4          11
SIZE=     1
           7
SIZE=     1
           8

==============================================================================

[Clustering all conformers of β-Glucose]

Clustering of all conformers for β-Glucose using dihedral angles of 6-members ring as the distance between conformations is performed.

Interface beta-Glucose numbered

Store three files of clus-BGLU.mol, clus-BGLU.ini, and clus-BGLU.fxf in an one folder.
These files are in Sample_Files folder in the folder installed CONFLEX (Sample_Files\CONFLEX\clustering\b-glucose).

[Execution by Interface]

Open the clus-BGLU.mol file by CONFLEX Interface.

Interface beta-Glucose

Select [CONFLEX] in Calculation menu, and click Detail Settings in the calculation setting dialog displayed.

Basic Settings

After that, click Edit & Submit in the detail setting dialog. A dialog with the keywords for the calculation settings will be displayed.

Edit and Submit Init

Add keywords to the dialog as shown below, and click Submit. The calculation will start.

Edit and Submit modified

[Execution by command line]

The calculation settings have already written in the clus-BGLU.ini file.

clus-BGLU.ini file

MMFF94S  CONFLEX NOSEARCH
CLUSTER
CCLUS_DISTANCE=TORSION
CCLUS_LIMIT=10.0
CCLUS_NREF=6
CCLUS_IREF=(1,2)
CCLUS_IREF=(2,10)
CCLUS_IREF=(10,11)
CCLUS_IREF=(11,3)
CCLUS_IREF=(3,4)
CCLUS_IREF=(4,1)

Execute below command. The calculation will start.

C:\CONFLEX\bin\flex9a_win_x64.exe   -par   C:\CONFLEX\par   clus-BGLUenter

The above command is for Windows OS. For the other OS, please refer to [How to execute CONFLEX].

Calculation results

The conformers are classified by 7 groups according to the conformation of 6-members ring.

==============================================================================
# RESULT -     1  IN CID NUMBER
# MIN=     1, MAX=   122, AVERAGE=   31.00, DISPERSION=  2499.816
==============================================================================
DISTANCE THRESHOLD=   10.00
NCLUSTERS=     7
SIZE=   122
          22           3           1          28          21           4
          12          13           2          59          14         127
          40          35          64         131          20          68
          57          33          74          58          82          88
         135          75          54         106          56          34
          92           5          55          65          97         139
          67         144          90         102         116         133
          39         101          72         132         111          83
          79          94         134         161          45          46
         103          86         151         100         167          80
         118         108         121         145          73         155
         149         173         126          95         140          49
         113          87          66          51         107          62
          98          52         125          61         142         124
         156         141         112         168          53         123
          89         117         166         122         160          60
         105         154          93         148         170          78
         150         115          96         176         153         171
         157         143         165         162         169         164
         175         158         163         177         172         182
         178         180
SIZE=    33
          76          31          29          99         137         104
         119         109          26         114          17         188
           9          23          38         192           6          77
         146          37          91         110         210          48
          44         174          43          15          69          42
         181         203          47
SIZE=    31
          50          16          30         130         138          85
          71          84         147         159         129          41
         152         136         179         120          36         186
          70          25         128         195          81         185
         184         201          63         191           8         194
         193
SIZE=     4
          32          24          10           7
SIZE=    26
         205         214         190         197         208         207
         218         189         202         212         187         198
         183         199         216         211         209         220
         217         204         215         196         213         206
         200         219
SIZE=     3
          27          19          11
SIZE=     1
          18

==============================================================================

The most stable structures in each group are shown below.

beta-Glucose cluster
